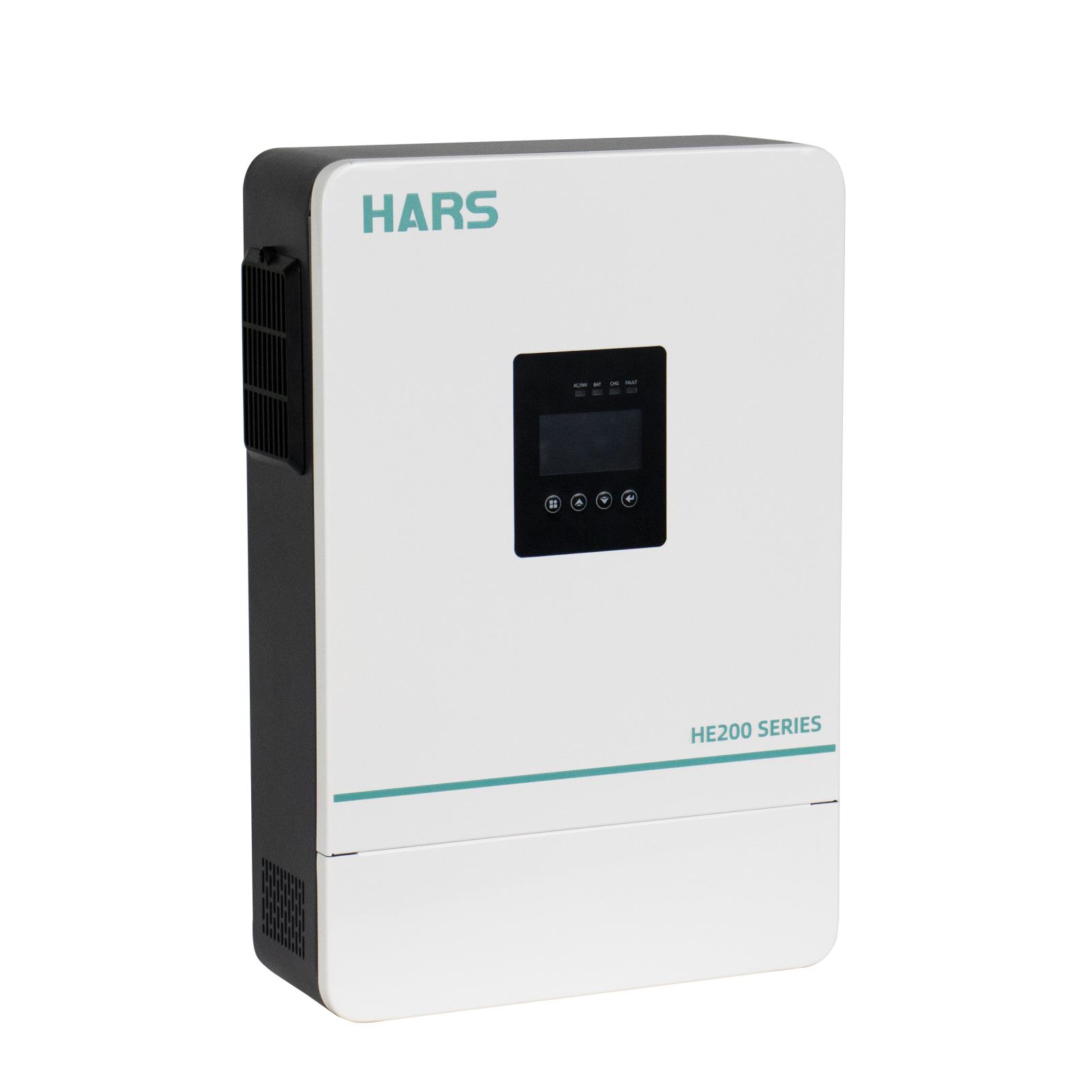

The HE200 is a versatile hybrid inverter (high-frequency machine) that outputs a single-phase pure sine wave. It combines the functions of an inverter, solar charger, and battery charger in a portable size, supporting uninterrupted power switching. Its LCD display offers user-configurable and easily accessible button operations, allowing for the setting of battery charging voltage and current, various power input and output priority settings, and adjustable output AC voltage and frequency to suit different grid environments. It also features a mobile app for online data monitoring.
■ Hybrid Grid Design
■ Adopts a hybrid grid design, providing AC power in environments without a grid.
■ High-Frequency Design
■ Utilizes high-frequency technology to reduce overall weight, with high power density, efficient energy utilization, and low no-load loss.
■ Flexible Configuration
■ Allows setting of charging and discharging voltage parameters via buttons, enabling flexible configuration of battery capacity.
■ Multiple Operating Modes
■ Operating modes can be configured (Utility Priority, Solar Priority, Battery Priority).
■ Mobile APP Online Monitoring
■ Supports online data monitoring via a mobile APP to track the operating status of the inverter-charger unit.
■ Equipped with CAN/RS485
■ Features CAN/RS485 for BMS communication.
■ Dual AC Output
■ Dual AC output capability.
HE200技術(shù)規(guī)格
Product model: HE200 hybrid inverter | |||
Inverter output | |||
HE200-4200-T | HE200-6500-T | HE200-6500-F | |
Maximum output power | 3600W | 5500W | 5500W |
maximum output voltage | 240Vac±5%（single phase） | 240Vac±5%（single phase） | 240Vac±5%（single phase） |
maximum output current | 15.7A | 23.9A | 23.9A |
Maximum Output Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
Output waveform | sine wave | sine wave | sine wave |
Output topology | L+N+PE | L1+N1+L2+N2+PE | L1+N1+L2+N2+PE |
Maximum number of parallel machines | |||
battery | |||
Type | Lead acid/lithium batteries | Lead acid/lithium batteries | Lead acid/lithium batteries |
Rated battery voltage | 24Vdc | 24Vdc | 48Vdc |
Maximum photovoltaic hybrid charging current | 100A | 160A | 80A |
Charging method | Two way/three way/automatic setting | Two way/three way/automatic setting | Two way/three way/automatic setting |
Photovoltaic input | |||
MPPT channels | 1 | 1 | 1 |
Maximum Input Power | 5000W | 9000W（4KW charging+5KW inverter） | 6000W |
Maximum open circuit voltage | 500Vdc | 500Vdc | 500Vdc |
Maximum input short-circuit current | 18A | 27A | 20A |
Input open circuit voltage range | 40~450Vdc | 60~450Vdc | 120~450Vdc |
99.5% | 99.5% | 99.5% | |
Municipal power/generator input | |||
Input Voltage | 90~280Vac | 90~280Vac | 90~280Vac |
Rated input voltage | 220Vac | 220Vac | 220Vac |
input frequency | 50/60Hz | 50/60Hz | 50/60Hz |
Maximum current | 20A | 40A | 40A |
General parameters | |||
size | 420*298*106 | 395*332.4*116.2 | 458*306*114.5 |
Net weight | 6.46kg | 8.4kg | 8.40kg |
Gross weight | 7.80kg | 9.8kg | 9.90kg |
protection grade | IP21 | IP21 | IP21 |
operation temperature | -10℃~50℃ | -10℃~50℃ | -10℃~50℃ |
Cooling method | Intelligent air cooling | Intelligent air cooling | Intelligent air cooling |
humidity | 5%~95% | 5%~95% | 5%~95% |
Product model: HE200 hybrid inverter | |||
Inverter output | |||
HE200-6500-FP | HE200-7200-F | ||
Maximum output power | 49500W（9 parallel expansion machines） | 49500W（9 parallel phase separation machines） | 6200W |
maximum output voltage | 240Vac±5%（single phase） | 415Vac±5%（three-phase） | 240Vac±5%（single phase） |
maximum output current | 215A | 130A | 27A |
Maximum Output Frequency | 50/60Hz | 50/60Hz | |
Output waveform | sine wave | sine wave | |
Output topology | L1+N1+L2+N2+PE | L1+N1+L2+N2+PE | |
Maximum number of parallel machines | 9 units | ||
battery | |||
Type | Lead acid/lithium batteries | Lead acid/lithium batteries | |
Rated battery voltage | 48Vdc | 48Vdc | |
Maximum photovoltaic hybrid charging current | 80A | 120A | |
Charging method | Two way/three way/automatic setting | Two way/three way/automatic setting | |
Photovoltaic input | |||
MPPT channels | 1 machine, 1 route, and 9 machines, 9 routes | 1 | |
Maximum Input Power | 1 way maximum 6000W | 9000W | |
Maximum open circuit voltage | 500Vdc | 500Vdc | |
Maximum input short-circuit current | 20A | 27A | |
Input open circuit voltage range | 120~450Vdc | 60~450Vdc | |
99.5% | 99.5% | ||
Municipal power/generator input | |||
Input Voltage | 90~280Vac | 90~280Vac | |
Rated input voltage | 220Vac | 220Vac | |
input frequency | 50/60Hz | 50/60Hz | |
Maximum current | 40A | 40A | |
General parameters | |||
size | 458*306*114.5 | 395*332.4*116.2 | |
Net weight | 8.40kg | 8.2kg | |
Gross weight | 9.90kg | 9.6kg | |
protection grade | IP21 | IP21 | |
operation temperature | -10℃~50℃ | -10℃~50℃ | |
Cooling method | Intelligent air cooling | Intelligent air cooling | |
humidity | 5%~95% | 5%~95% | |
